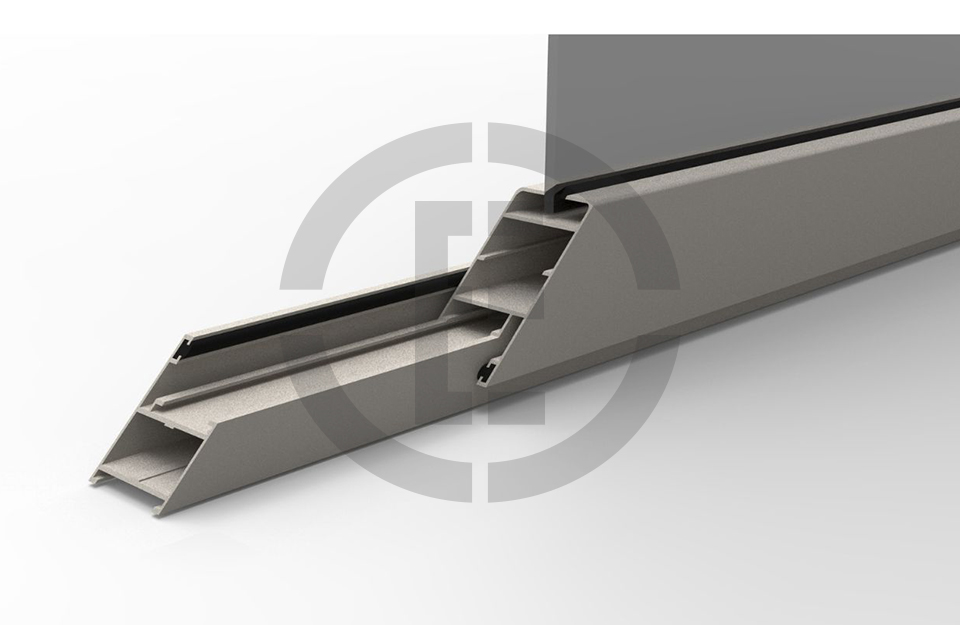

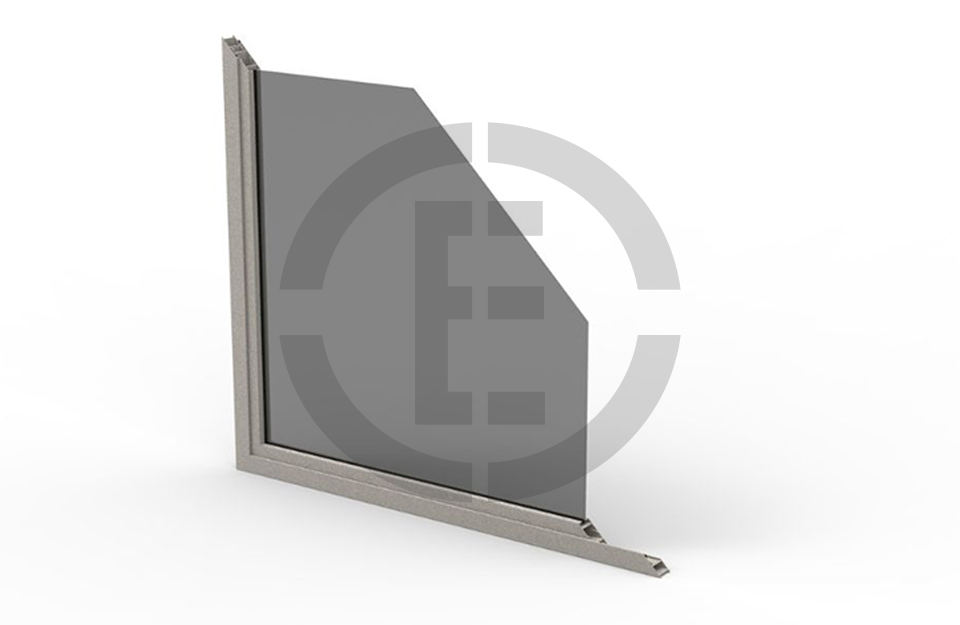

| Shutter | 40mm x 65mm |
| Frame | 40mm x 39mm |
| Window Height | Max. 1650mm |
| Sash Width | Max. 650mm |
| Sash Weight | Max. 50kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connectors |
| Hinges | Butt Hinges | Friction Hinges |
| Glass Details | Min. 5mm to Max. 20mm |
| Glazing Options | Single | Laminated | DGU |
| Sealing Type | EPDM Gasket |
| Mosquito Mesh | Roll Down | Retractable |
| Surface Finish | Anodized, Powder Coated & Wood Finish |
| Opening | Side Hung | Top Hung |

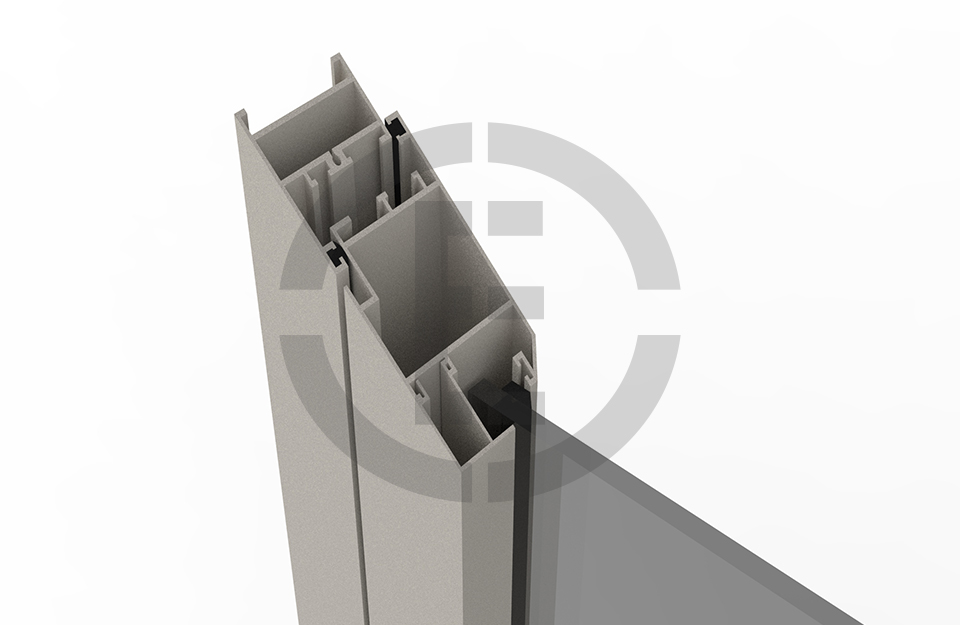

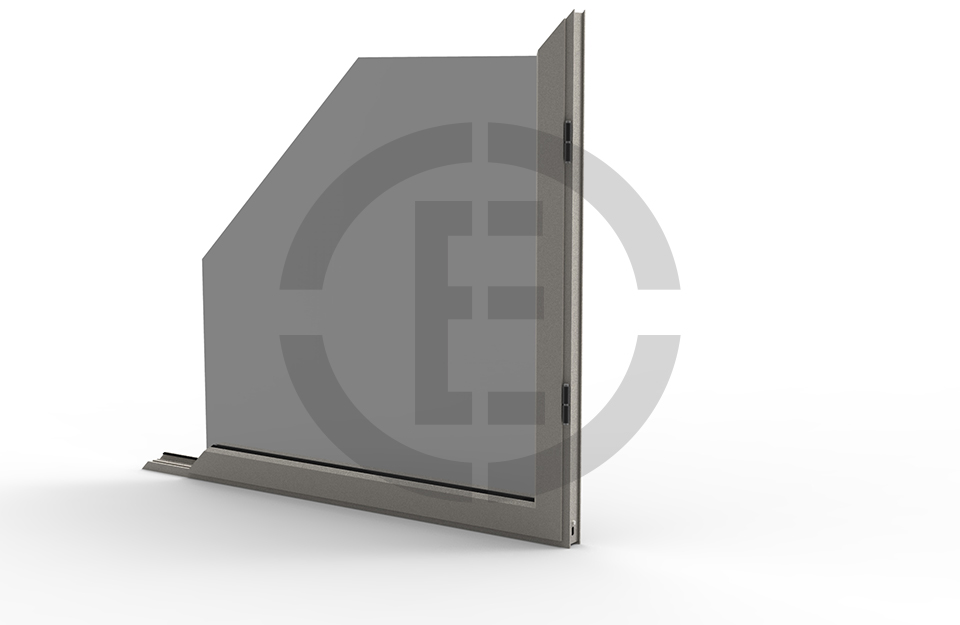

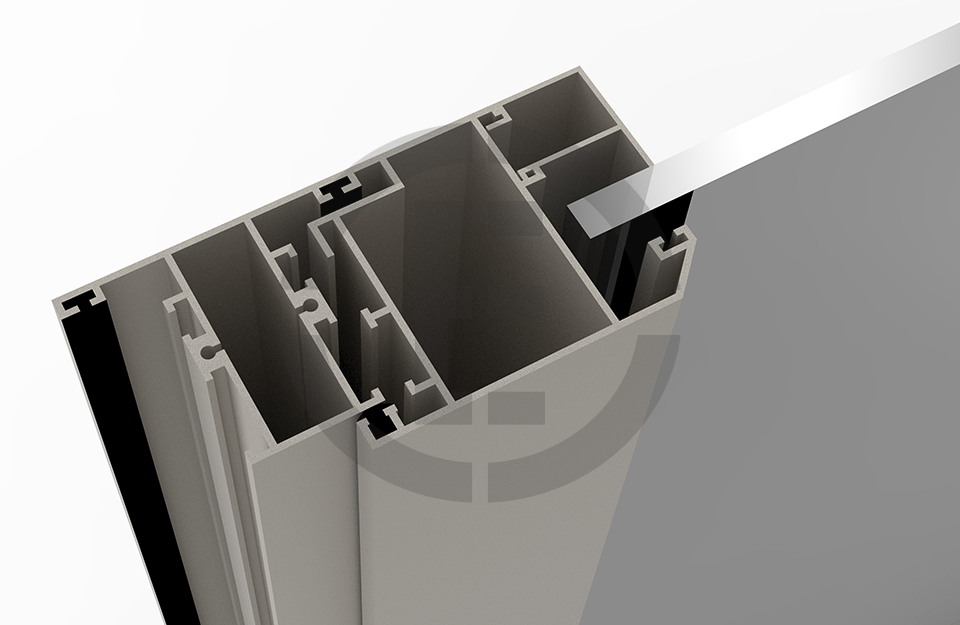

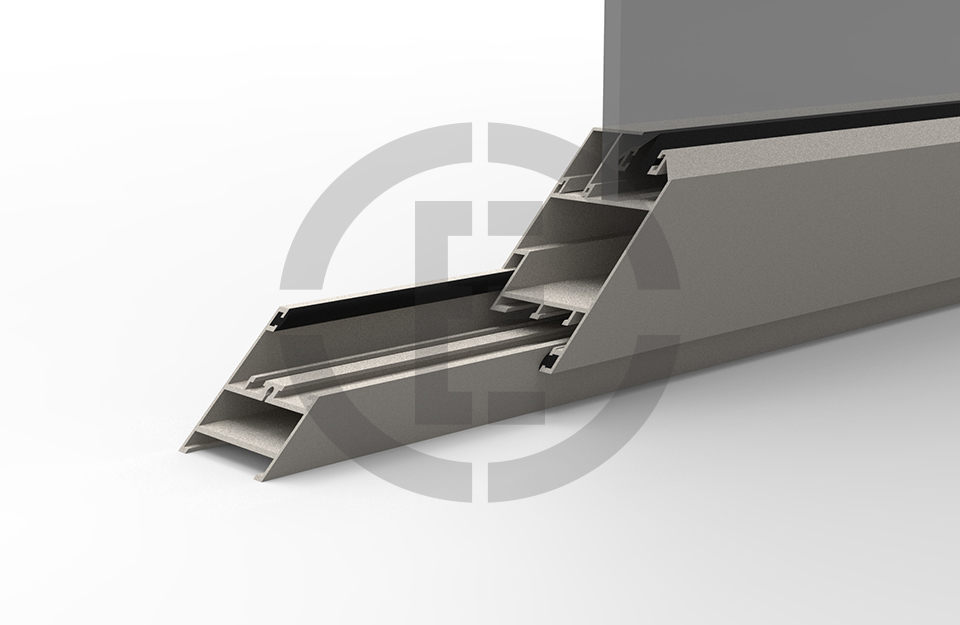

| Shutter | 58mm x 79mm |
| Frame | 50mm x 46mm |
| Window Height | Max. 1980mm |
| Sash Width | Max. 750mm |
| Sash Weight | Max. 80kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connectors |
| Hinges | Butt Hinges | Friction Hinges |
| Glass Details | Min. 5mm to Max. 38mm |
| Glazing Options | Single | Laminated | DGU |
| Sealing Type | EPDM Gasket |
| Mosquito Mesh | Roll Down | Retractable |
| Surface Finish | Anodized, Powder Coated & Wood Finish |
| Opening | Side Hung | Top Hung |

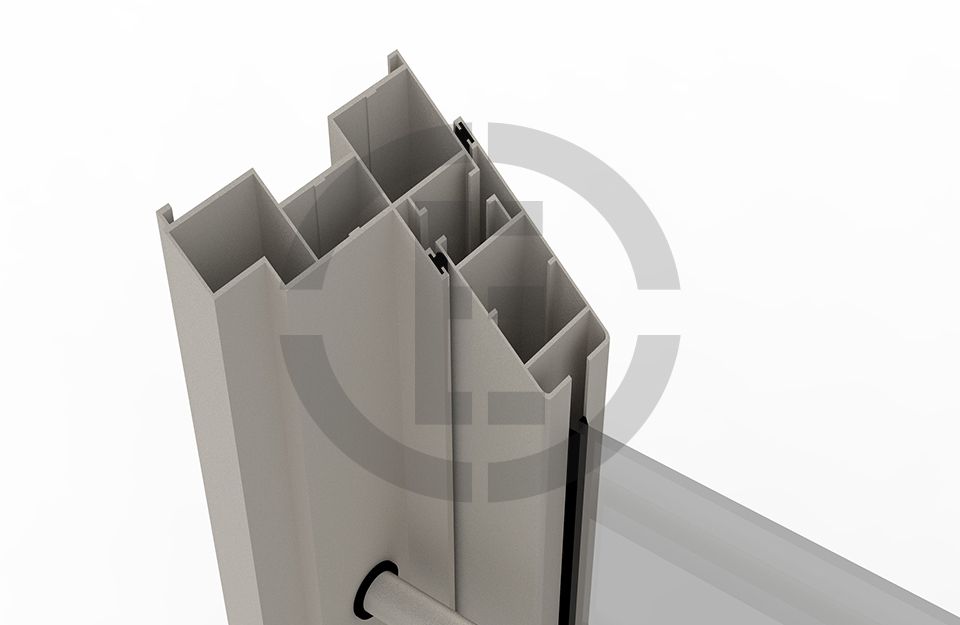

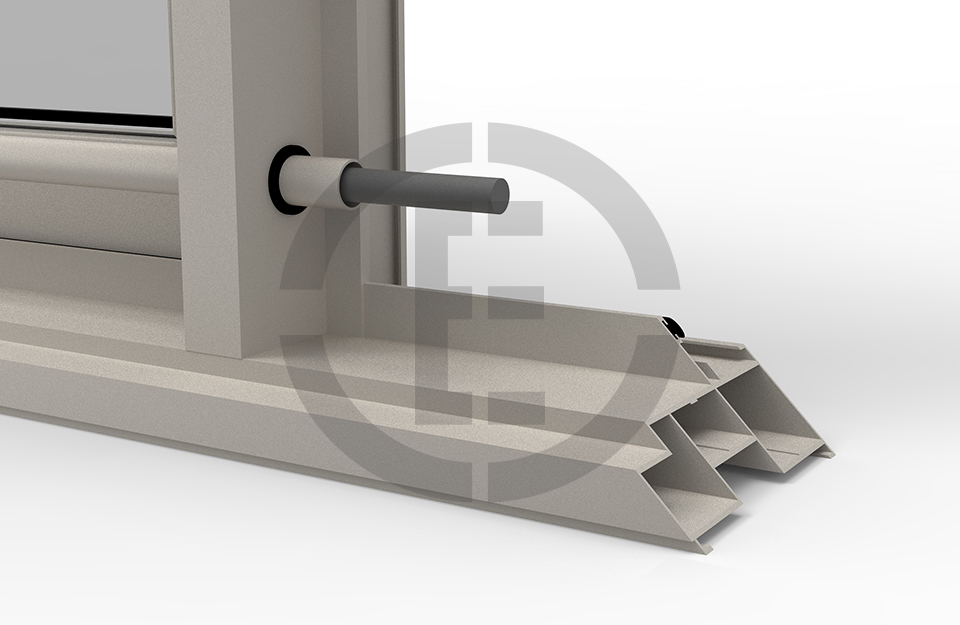

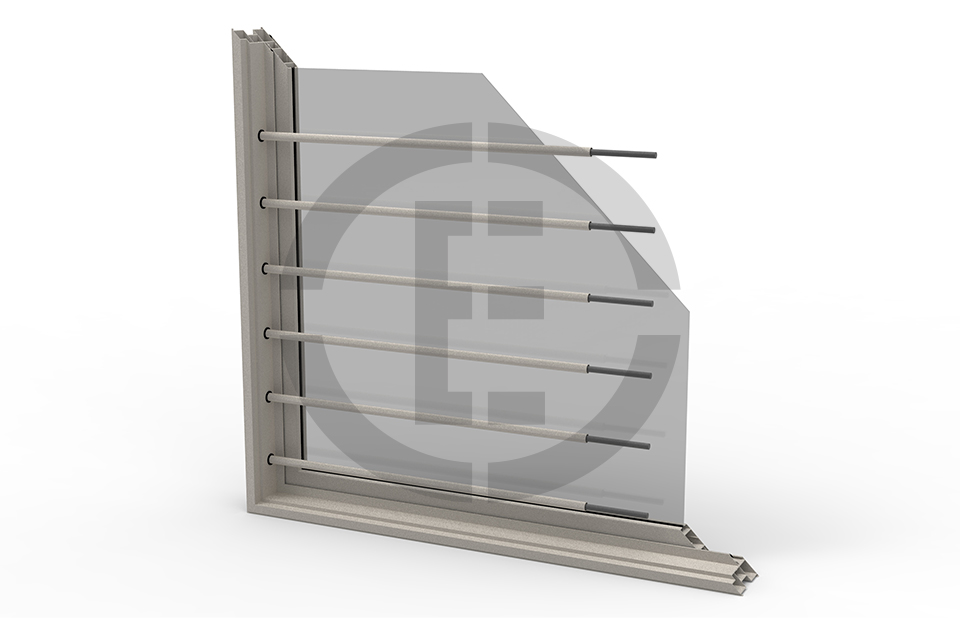

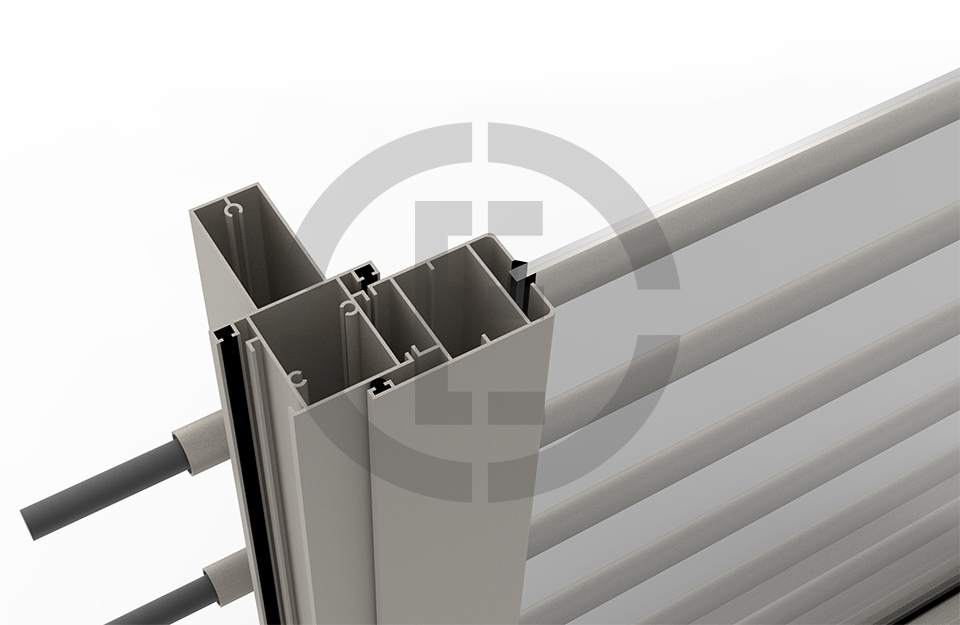

| Shutter | 40mm x 65mm |
| Frame | 114mm x 48mm |
| Iron Rod | Round Bright Bar 12mm/14mm/16mm |
| Aluminium Pipe | Round Pipe 19mm/Capsule Pipe |
| Window Height | Max. 1650mm |
| Sash Width | Max. 650mm |
| Sash Weight | Max. 50kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connectors |
| Hinges | Butt Hinges | Friction Hinges |
| Glass Details | Min. 5mm to Max. 20mm |
| Glazing Options | Single | Laminated | DGU |
| Sealing Type | EPDM Gasket |
| Mosquito Mesh | Roll Down | Retractable |
| Surface Finish | Anodized, Powder Coated & Wood Finish |
| Opening | Side Hung | Top Hung |

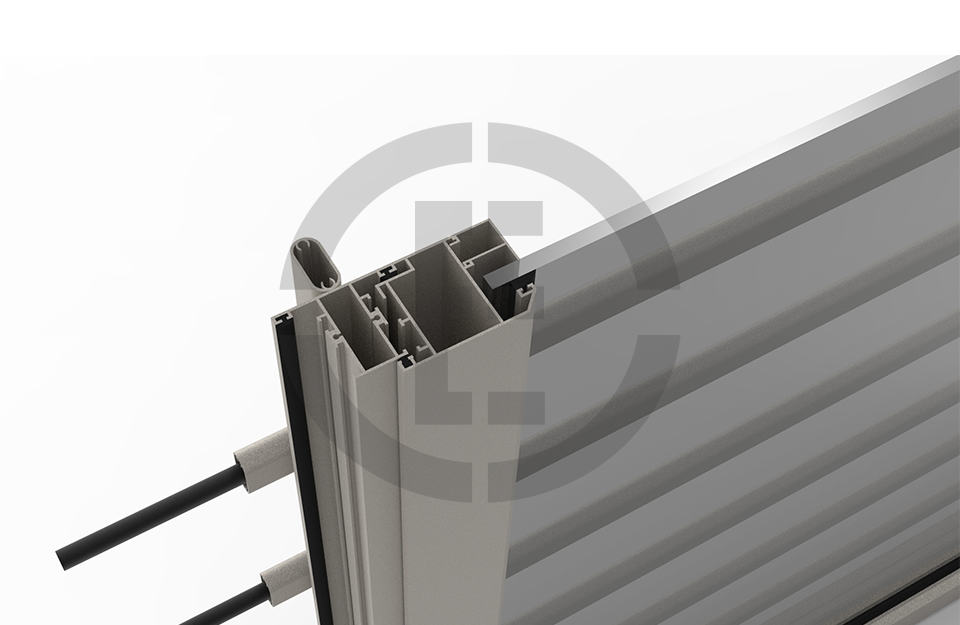

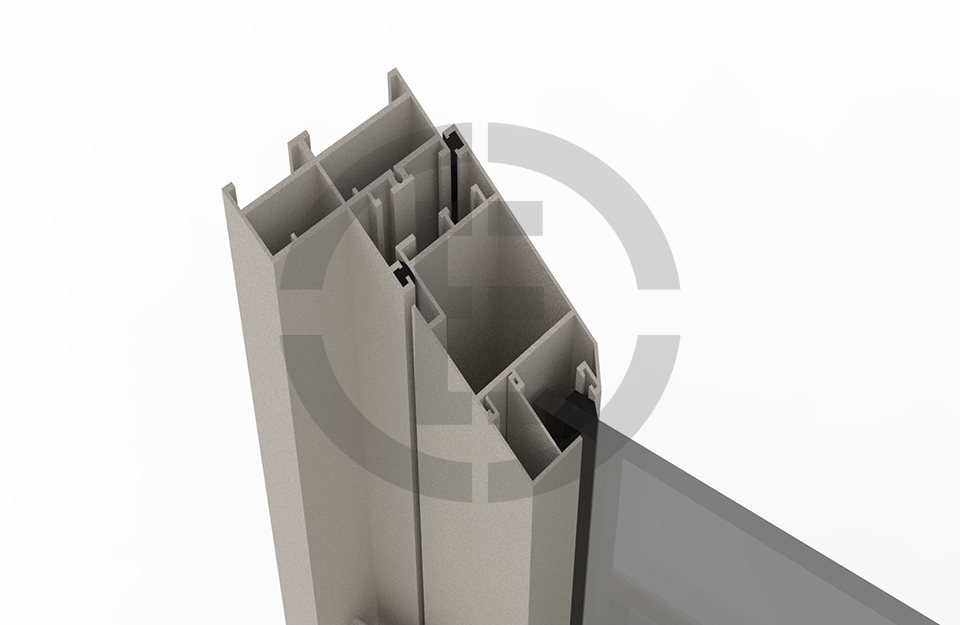

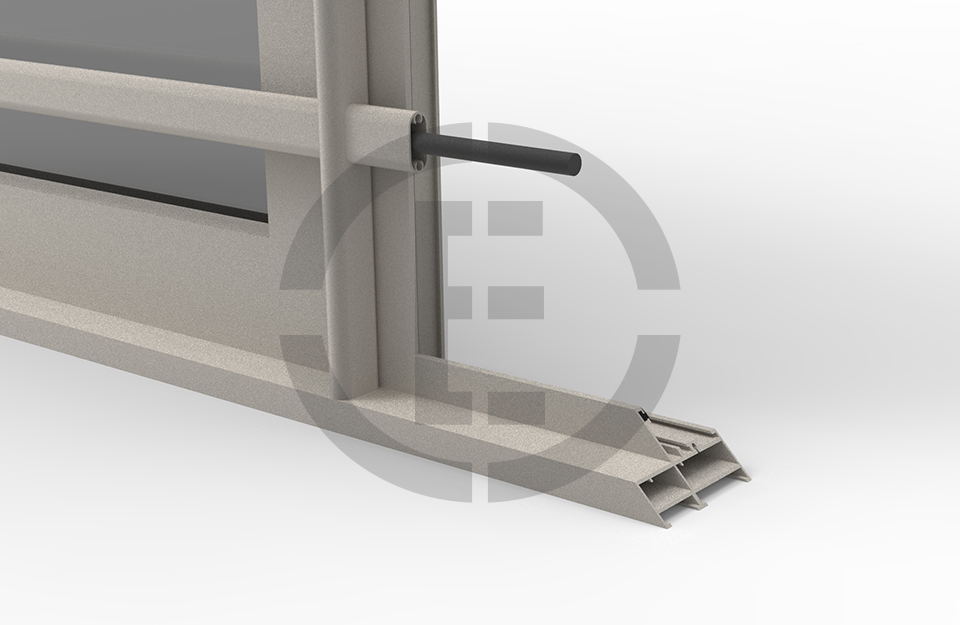

| Shutter | 58mm x 79mm |
| Frame | 86mm x 51mm |
| Iron Rod | Round Bright Bar 12mm/14mm/16mm |
| Aluminium Pipe | Round Pipe 19mm/Capsule Pipe |
| Window Height | Max. 1980mm |
| Sash Width | Max. 750mm |
| Sash Weight | Max. 80kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connectors |
| Hinges | Butt Hinges | Friction Hinges |
| Glass Details | Min. 5mm to Max. 20mm |
| Glazing Options | Single | Laminated | DGU |
| Sealing Type | EPDM Gasket |
| Mosquito Mesh | Roll Down | Retractable |
| Surface Finish | Anodized, Powder Coated & Wood Finish |
| Opening | Side Hung | Top Hung |
