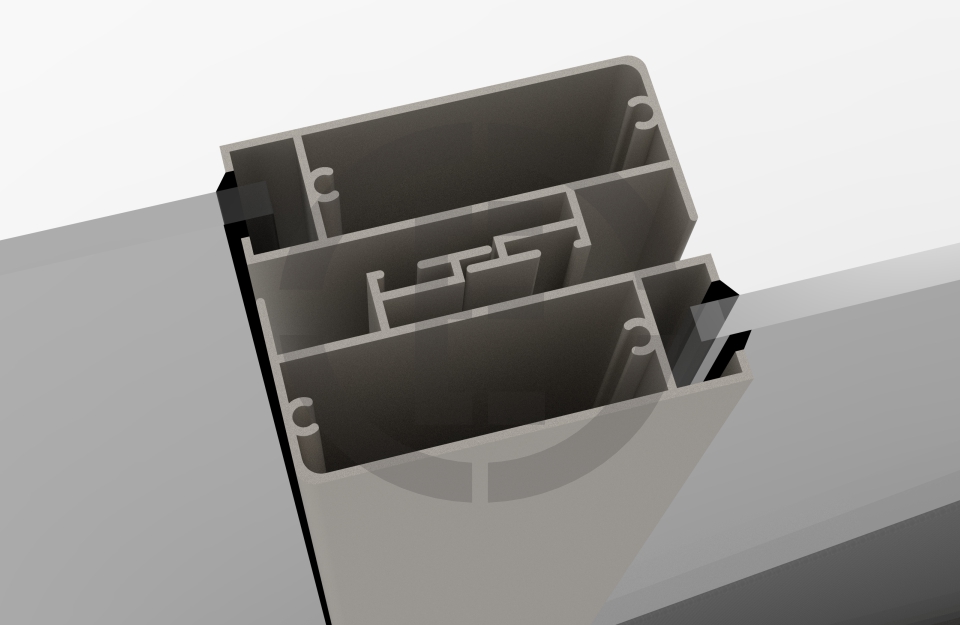

| Shutter | 18mm x 60mm |
| 2 Track Frame | 62mm x 32mm |
| 3 Track Frame | 92mm x 32mm |
| 4 Track Frame | 122mm x 32mm |
| Window Height | Max 1524mm |
| Sash Weight | max 40kg. |
| Locking System | Signlepoint |
| Joinery Details | 90 Degree With Screws Connection |
| Glass Thickness | 4mm | 5mm |
| Glazing Options | Single |
| Sealing | PVC | EPDM Gasket |
| Mosquito Mesh | Fiber | Alluminium | SS Mesh |
| Surface Finish | Anodized & Powder Coated |

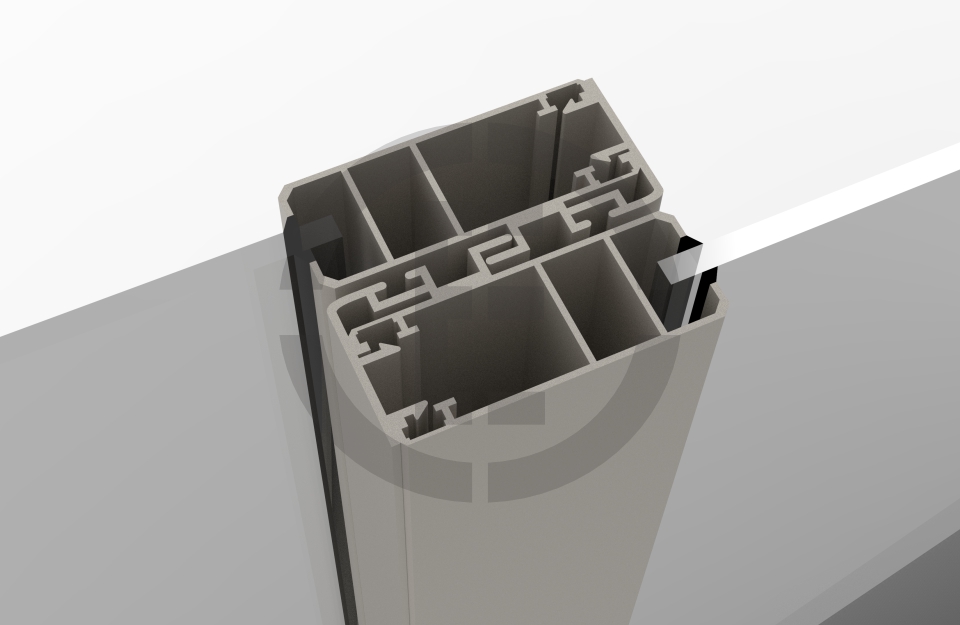

| Shutter | 23mm x 58mm |
| 2 Track Frame | 38mm x 40mm |
| 3 Track Frame | 70mm x 40mm |
| Window Height | Max 1800mm |
| Sash Weight | max 55kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connection |
| Glass Thickness | 5mm | 6mm |
| Glazing Options | Single |
| Sealing | EPDM Gasket |
| Mosquito Mesh | Fiber | Alluminium | SS Mesh |
| Surface Finish | Anodized. Powder Coated And Wood Finish |
| Shutter | 25mm x 63mm |
| 2 Track Frame | 51mm x 40mm |
| 2 Track Frame W/L | 62mm x 43mm |
| 3 Track Frame | 88mm x 40mm |
| 3 Track Frame W/L | 101mm x 43mm |
| Window Height | Max 1800mm |
| Sash Weight | max 70kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connectors |
| Glass Thickness | 5mm | 16mm |
| Glazing Options | Single | Laminated | DGU |
| Sealing | EPDM Gasket |
| Mosquito Mesh | Fiber | Alluminium | SS Mesh |
| Surface Finish | Anodized. Powder Coated And Wood Finish |

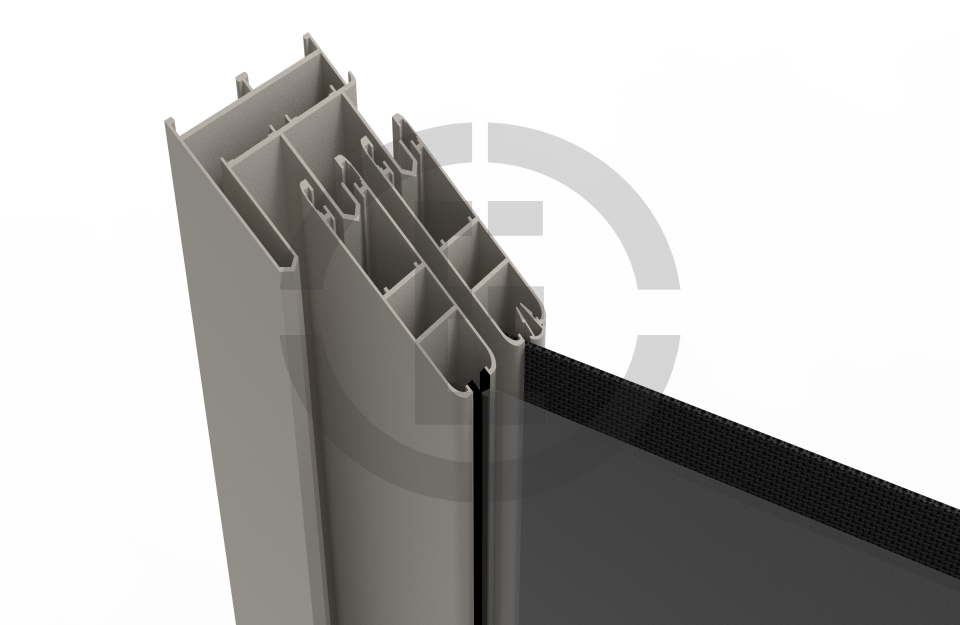

| Shutter | 27mm x 65mm |
| 2 Track Frame | 45mm x 45mm |
| 3 Track Frame | 80mm x 45mm |
| 3 Track Frame W/L | 95mm x 48mm |
| Window Height | Upto 1880mm |
| Sash Weight | max 90kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connection |
| Glass Thickness | Min. 5mm to Max. 20mm |
| Glazing Options | Single | Laminated | DGU |
| Sealing | EPDM Gasket |
| Mosquito Mesh | Fiber | Alluminium | SS Mesh |
| Surface Finish | Anodized. Powder Coated And Wood Finish |
| Shutter | 29mm x 65mm (Slim Interlock Available) |
| 2 Track Frame | 50mm x 48mm |
| 2 Track Frame W/L | 65mm x 50mm |
| 3 Track Frame | 86mm x 48mm |
| 3 Track Frame W/L | 100mm x 50mm |
| Window Height | Upto 2400mm |
| Sash Weight | Max. 120kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connectors |
| Glass Thickness | Min. 5mm to Max. 22mm |
| Glazing Options | Single | Laminated | DGU |
| Sealing | EPDM Gasket |
| Mosquito Mesh | Fiber | Alluminium | SS Mesh |
| Surface Finish | Anodized. Powder Coated And Wood Finish |

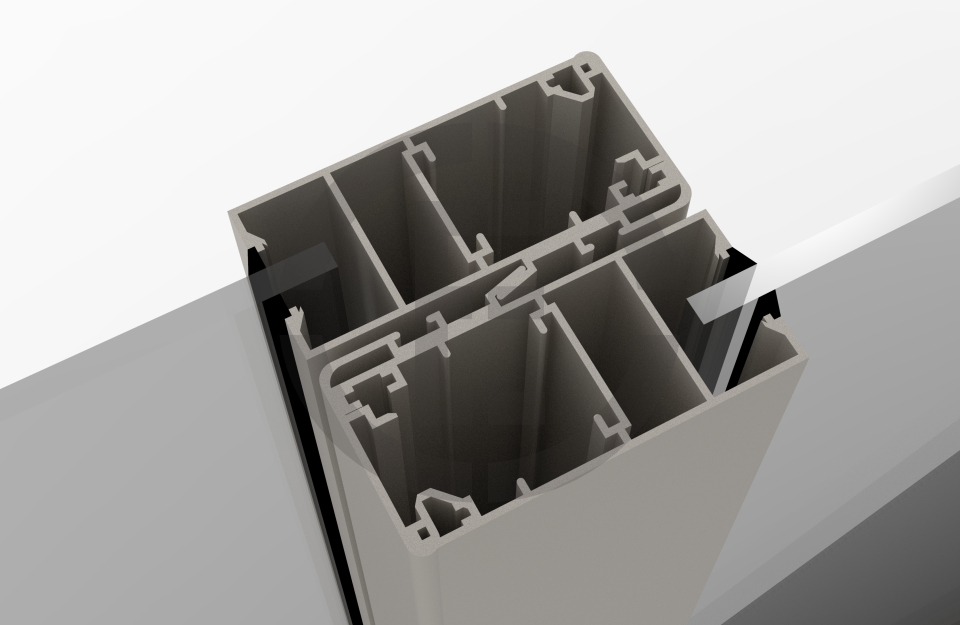

| Shutter | 32mm x 65mm (Slim Interlock Available) |
| 2 Track Frame | 74mm x 47mm |
| 2 Track Frame W/L | 75mm x 50mm |
| 3 Track Frame | 116mm x 47mm |
| 3 Track Frame W/L | 114mm x 50mm |
| Window Height | Upto 2800mm |
| Sash Weight | Max 150kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connectors |
| Glass Thickness | Min. 5mm to Max. 24mm |
| Glazing Options | Single | Laminated | DGU |
| Sealing | EPDM Gasket |
| Mosquito Mesh | Fiber | Alluminium | SS Mesh |
| Surface Finish | Anodized. Powder Coated And Wood Finish |

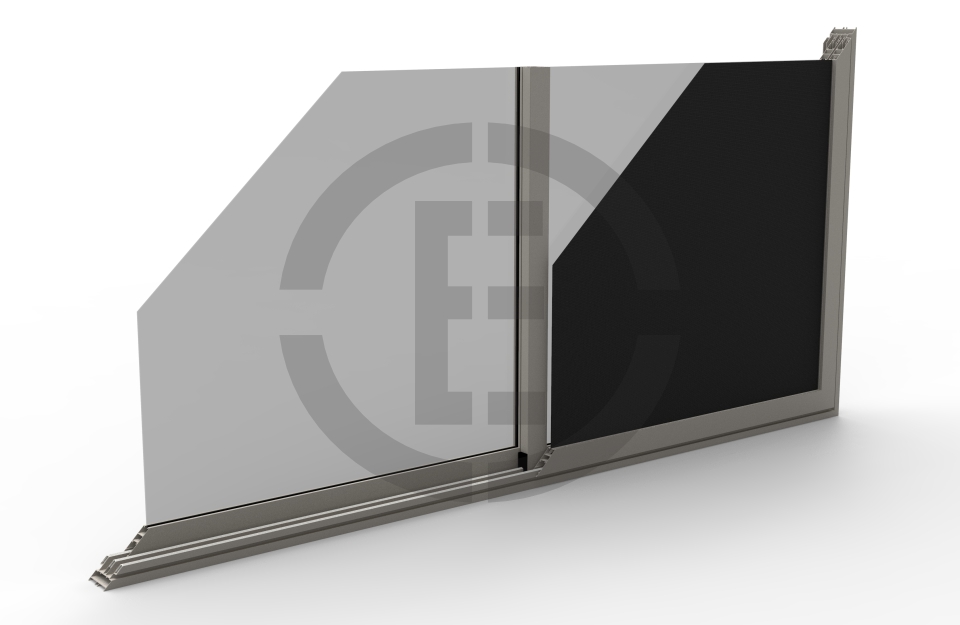

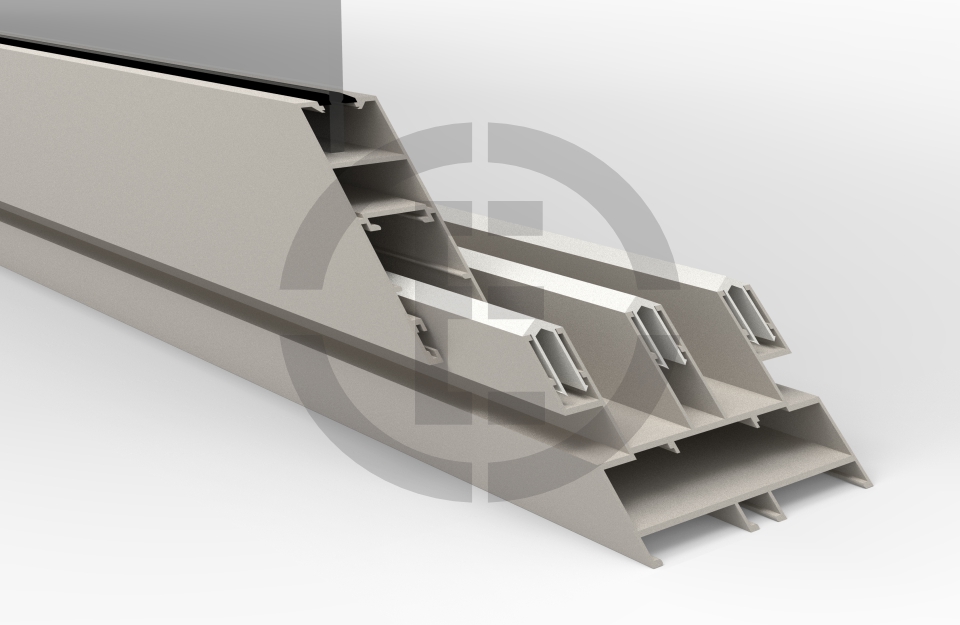

| Shutter | 35mm x 75mm |
| 2 Track Frame | 59mm x 46mm |
| 2 Track Frame W/L | 85mm x 49mm |
| 3 Track Frame | 104mm x 46mm |
| 3 Track Frame W/L | 130mm x 49mm |
| Window Height | Max 3000mm |
| Sash Weight | Max 180kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connectors |
| Glass Thickness | Min. 5mm to Max. 24mm |
| Glazing Options | Single | Laminated | DGU |
| Sealing | EPDM Gasket |
| Mosquito Mesh | Fiber | Alluminium | SS Mesh |
| Surface Finish | Anodized. Powder Coated And Wood Finish |

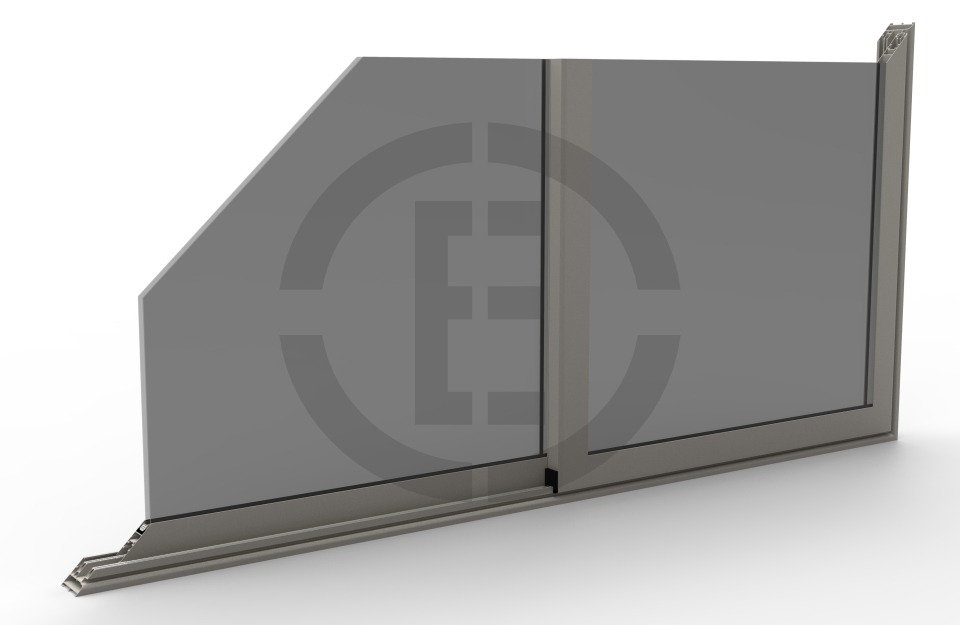

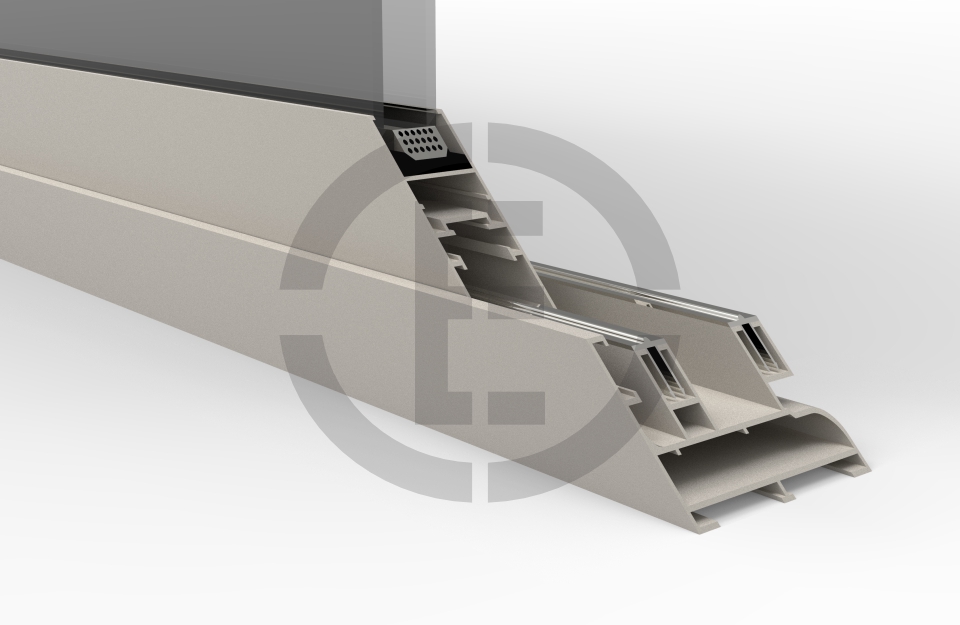

| Shutter | 37mm x 83mm (Slim Interlock Available) |
| 2 Track Frame W/L | 90mm x 53mm |
| 3 Track Frame W/L | 140mm x 53mm |
| Window Height | Max. 3650mm |
| Sash Weight | Max. 200kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connectors |
| Glass Thickness | Min. 5mm to Max. 31mm |
| Glazing Options | Single | Laminated | DGU |
| Sealing | EPDM Gasket |
| Mosquito Mesh | Fiber | Alluminium | SS Mesh |
| Surface Finish | Anodized. Powder Coated And Wood Finish |

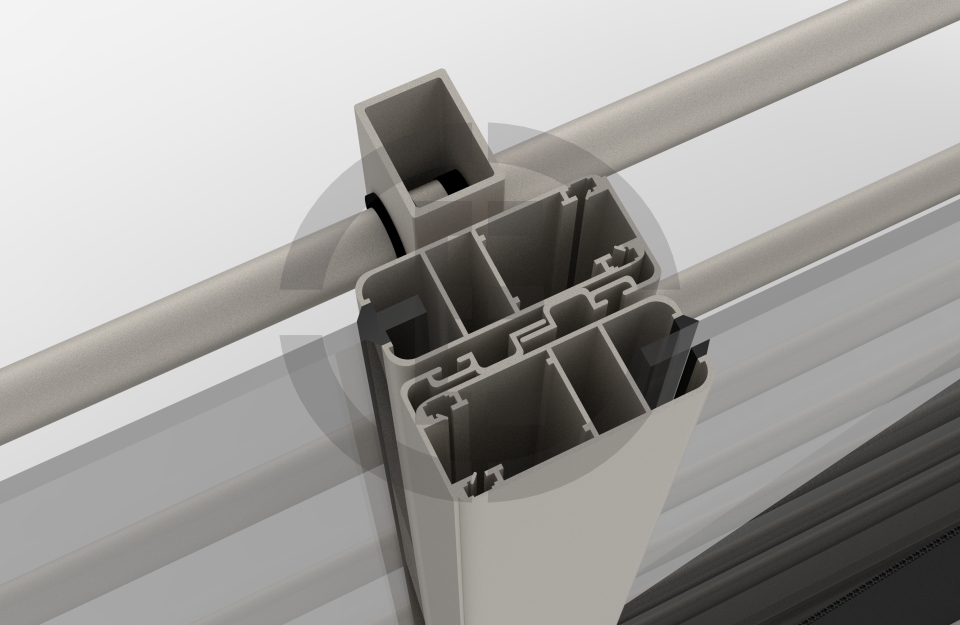

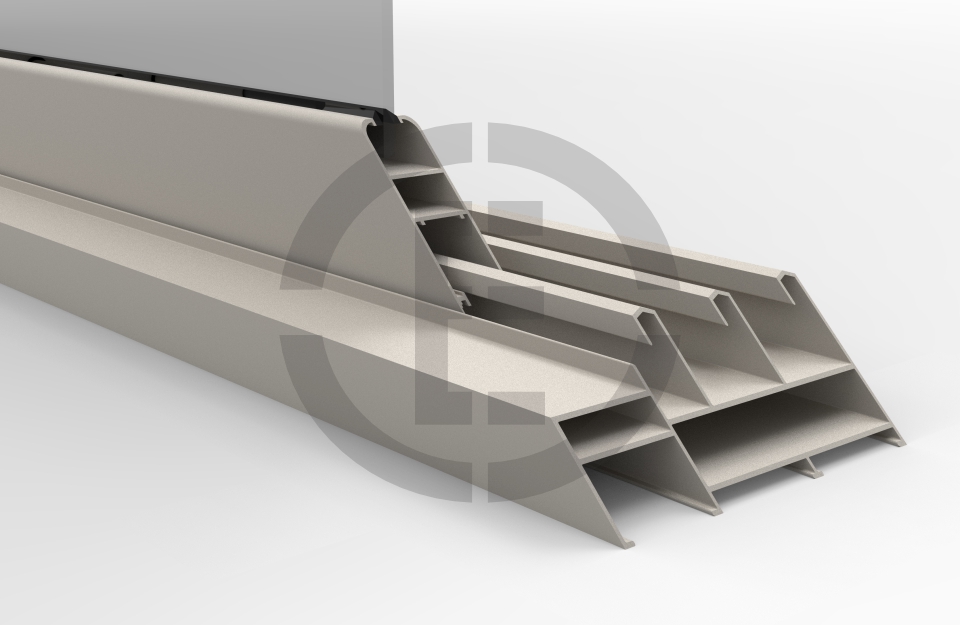

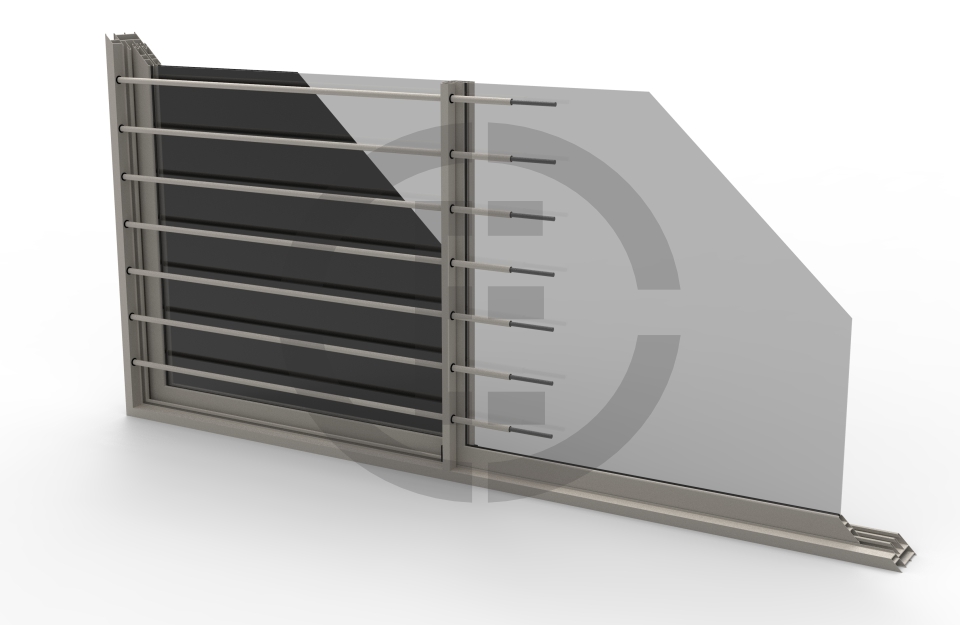

| Shutter | 27mm x 65mm |
| 2 Track Frame | 117mm x 45mm |
| 3 Track Frame | 130mm x 45mm |
| Iron Road | Round Bright Bar 12mm/14mm/16mm |
| Aluminium Pipe | Round Bar 19mm/Capsule Pipe |
| Window Height | Max 1980mm |
| Sash Weight | max 90kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connectors |
| Glass Thickness | Min. 5mm to Max. 20mm |
| Glazing Options | Single | Laminated | DGU |
| Sealing | EPDM Gasket |
| Mosquito Mesh | Fiber | Alluminium | SS Mesh |
| Surface Finish | Anodized. Powder Coated And Wood Finish |

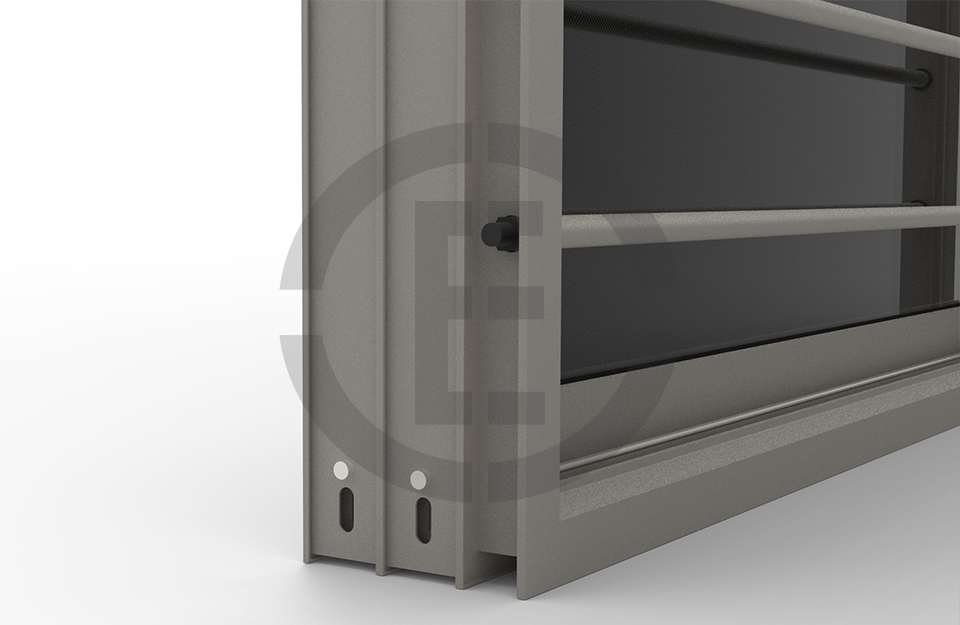

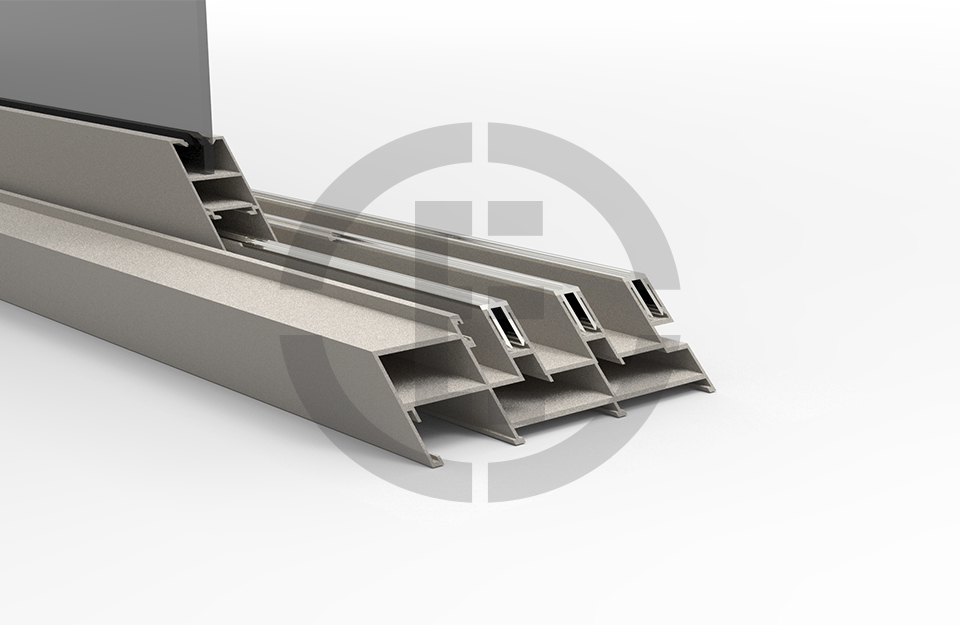

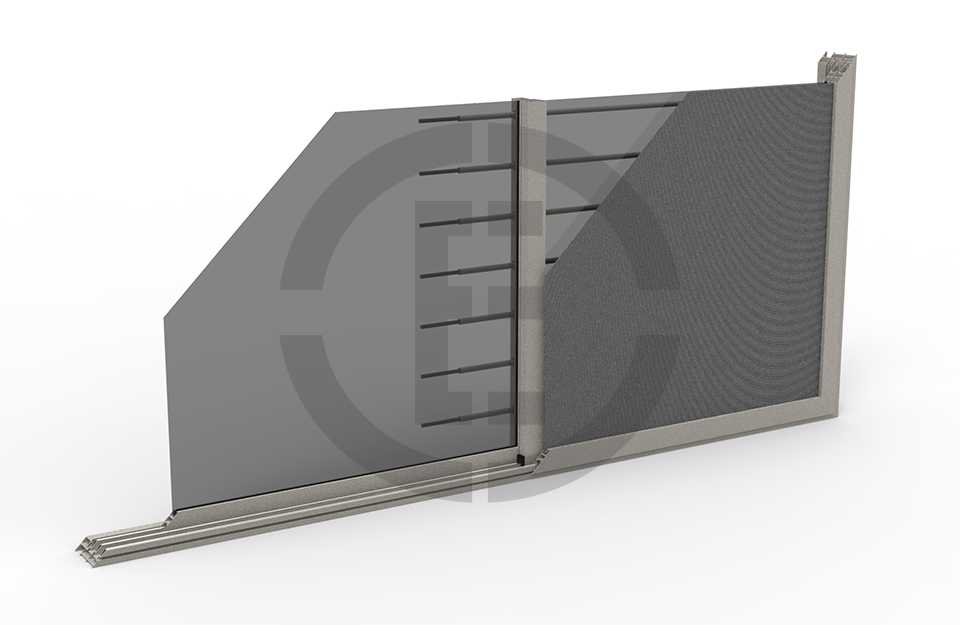

| Shutter | 29mm x 65mm |
| 2 Track Frame | 126mm x 43mm |
| 3 Track Frame | 143mm x 40mm |
| Iron Road | Round Bright Bar 12mm/14mm/16mm |
| Aluminium Pipe | Round Bar 19mm/Capsule Pipe |
| Window Height | Max. 2400mm |
| Sash Weight | Max. 120kg. |
| Locking System | Signlepoint | Multipoint |
| Joinery Details | 45 Degree With Corner Connectors |
| Glass Thickness | Min. 5mm to Max. 22mm |
| Glazing Options | Single | Laminated | DGU |
| Sealing | EPDM Gasket |
| Mosquito Mesh | Fiber | Alluminium | SS Mesh |
| Surface Finish | Anodized. Powder Coated And Wood Finish |
